HDPE PVC Double Wall Corrugated Pipe Production Line , DWC Pipe Manufacturing Machine

Name: HDPE PVC Double Wall Corrugated Pipe Production Line DWC Pipe Manufacturing Machine
Brand: wangyuan
Price: 45555 USD

Wholesale HDPE PVC Double Wall Corrugated Pipe Production Line , DWC Pipe Manufacturing Machine from china suppliers

Brand Name : wangyuan

Model Number : Sj75/33 + Sj50/33 extruder

Certification : SGS

Place of Origin : China

MOQ : 1

Price : 45555-49777usd

Payment Terms : L/C T/T

Supply Ability : 5 set per month

Delivery Time : 50days

Packaging Details : film

pipe name : Double Wall Corrugated Pipe Production Line

pipe mould : 38 pairs .60pairs

pipe speed : 2-6m.min

pipe Application : Drainage Corrugated Tube Making Machine

Application : Frontage drains for terrace and other residential units in housing schemes

Application 2 : Pipe Manufacture Extruder Making Machine DWC Corrugated Pipe Making Machine

Contact Now

Pipe Manufacture Extruder Making Machine DWC Corrugated Pipe Making Machine

HDPE/PVC Double Wall Corrugated Pipe Making Machine

Double Wall Corrugated Pipe Production Line

HDPE double wall corrugated pipe making machine

dwc pipe manufacturing machine
corrugated pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator.

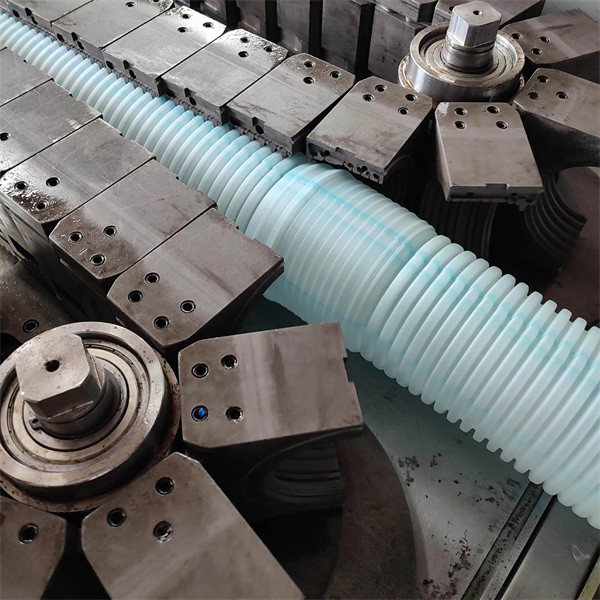

Mould blocks can be easily changed and they have air or water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.

Type Pipe	Diameter(mm)	HDPE Output(kg/h)	MAX Speed(m/min)
CS-160	50-160	300-400	5
CS-500	200-500	600-700	3
CS-800	200-800	1000-1100	3
CS-1200	600-1200	1000-1200	1

Customized PP/PE Corrugated Hose Making Machines Flexible Spiral Single Wall Corrugated Pipe Extrusion Machines Manufacturer

high speed PP PE single wall double wall corrugated pipe manufacture extruder making machine DWC corrugated pipe making machine

Plastic corrugated flexible pipe making machine

plastic single wall corrugated pipe extrusion line can produce PP/PE/PVC/EVA/PA corrugated pipe.Mould Chain adopts gear transmission,base plate adopts water cooling,mould adopts air cooling.

Corrugated pipe produced by our machine has the features of high production speed,even corrugated shape,straight pipe seam,and smooth surface. By equipped with vacuum pump and vacuum type mould,it can produce different use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe,hookah pipe etc.)

Extrusion line for the production of single-wall and double wall corrugated tubes and pipes made of PE, PP, PVC, PA, EVA, PVDF, TPE etc.

HDPE PVC Double Wall Corrugated Pipe Production Line , DWC Pipe Manufacturing Machine
