5-25m/Min PP PPR PE PVC Pipe Extruder Machine Multilayer Plastic Tube Making Machine

Name: 525mMin PP PPR PE PVC Pipe Extruder Machine Multilayer Plastic Tube Making Machine
Brand: wangyuan
Price: 41888 USD

Wholesale 5-25m/Min PP PPR PE PVC Pipe Extruder Machine Multilayer Plastic Tube Making Machine from china suppliers

Brand Name : wangyuan

Model Number : extrusion plastic pipes

Certification : SGS

Place of Origin : China

MOQ : 1

Price : 41888-45333usd

Payment Terms : L/C T/T

Supply Ability : 5 set per month

Delivery Time : 50days

Packaging Details : film

Name : extrusion plastic pipes

Warranty : 1 Year

Application : Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine

extruder model : SJ60/38 with 45kw

extruder : high speed single screw extruder

mould : Plastic three layers Pipe mould

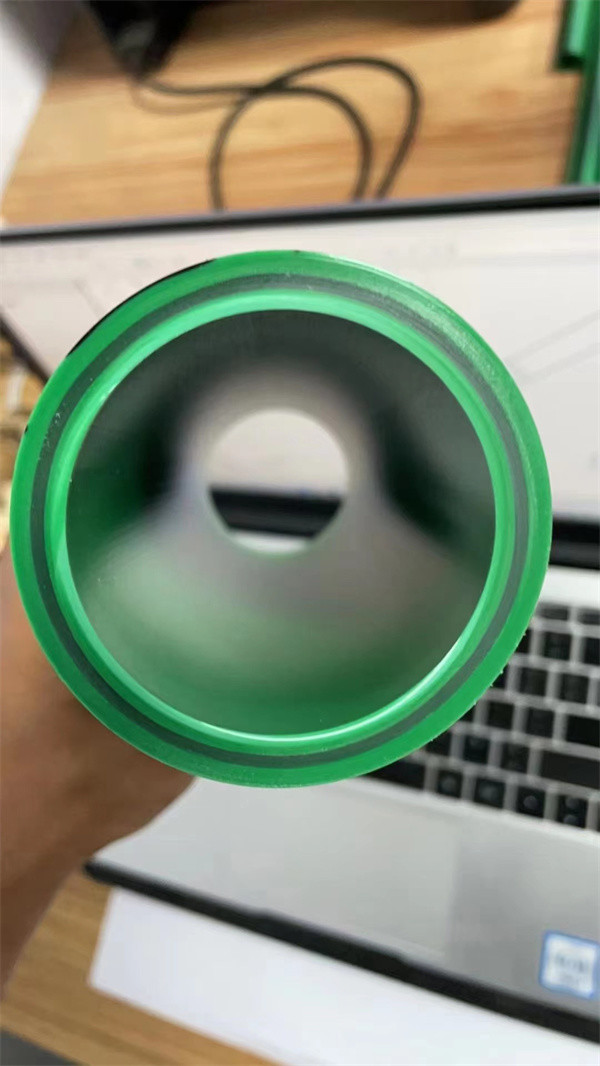

pipe : ABA / ABC /three layers structure

pipe output : 180-250kg.h

Contact Now

20-63mm PPR PPH HDPE Pipe Extrusion Machine Plastic Tube Making Machine

1. Application Hot water supply
2. Siemens 1200 PLC computer control
3. Pipe diameter: 20mm-63mm
4. Speed: 5-25m/min

The Multilayer plastic Pipe making machine can make the pipe layer(AB/ABA/ABC/ABCA)

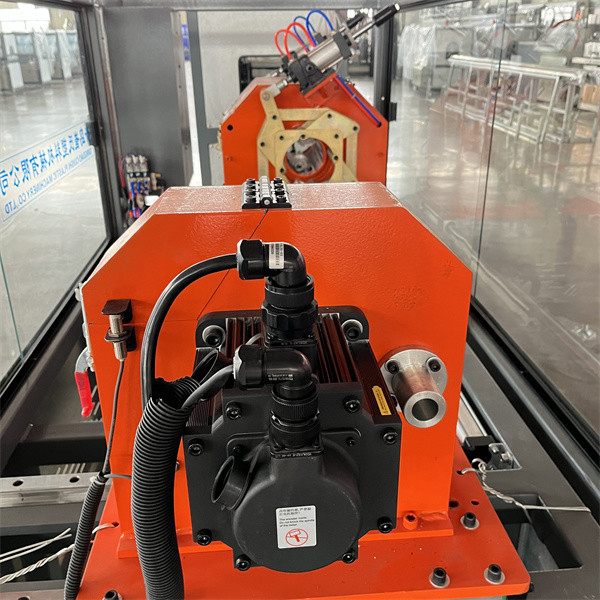

main components includes: Main Extruder, Co-Extruder, Marking line Extruder, Die head mould, Vacuum calibrating tank, Water cooling tank, haul off machine, Cutting machine, Electrical cabinet

Features of Product:
· 1)Specialized fiber glass reinforced plastic extruder with double metal screws and barrel ,ensuring both high speed extrusion and long service life of the extruder.
· 2)Composite extrusion head of special design, ensure uniform thickness of three layers, and thickness of each layer can be adjustable.
· 3)Compare to common PP-R material, extruded material by this production line has features of high compression strength, no deformation in high temperature, no bending and very small longitudinal reversion rate. Furthermore, its cost is about 5%~10% cheaper than other tubes, it eliminated serious fault of common PP-R tubes which will be deformed while carrying hot water.
